GHOST_EventDragnDrop Class Reference

#include <GHOST_EventDragnDrop.h>

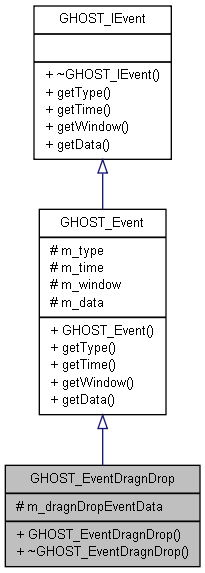

Inheritance diagram for GHOST_EventDragnDrop:

List of all members.

Public Member Functions
	GHOST_EventDragnDrop (GHOST_TUns64 time, GHOST_TEventType type, GHOST_TDragnDropTypes dataType, GHOST_IWindow *window, int x, int y, GHOST_TEventDataPtr data)
	~GHOST_EventDragnDrop ()
Protected Attributes
GHOST_TEventDragnDropData	m_dragnDropEventData

---

Detailed Description

Drag & drop event

The dragging sequence is performed in four phases:

Start sequence (GHOST_kEventDraggingEntered) that tells a drag'n'drop operation has started. Already gives the object data type, and the entering mouse location

Update mouse position (GHOST_kEventDraggingUpdated) sent upon each mouse move until the drag'n'drop operation stops, to give the updated mouse position. Useful to highlight a potential destination, and update the status (through GHOST_setAcceptDragOperation) telling if the object can be dropped at the current cursor position.

Abort drag'n'drop sequence (GHOST_kEventDraggingExited) sent when the user moved the mouse outside the window.

Send the dropped data (GHOST_kEventDraggingDropDone)

Outside of the normal sequence, dropped data can be sent (GHOST_kEventDraggingDropOnIcon). This can happen when the user drops an object on the application icon. (Also used in OSX to pass the filename of the document the user doubled-clicked in the finder)

Note that the mouse positions are given in Blender coordinates (y=0 at bottom)

Currently supported object types : UTF-8 string array of strings representing filenames (GHOST_TStringArray) bitmap ImBuf

Definition at line 70 of file GHOST_EventDragnDrop.h.

---

Constructor & Destructor Documentation

GHOST_EventDragnDrop::GHOST_EventDragnDrop	(	GHOST_TUns64	time,
		GHOST_TEventType	type,
		GHOST_TDragnDropTypes	dataType,
		GHOST_IWindow *	window,
		int	x,
		int	y,
		GHOST_TEventDataPtr	data
	)		[inline]

Constructor.

Parameters:

time	The time this event was generated.
type	The type of this event.
dataType	The type of the drop candidate object
window	The window where the event occurred
x	The x-coordinate of the location the cursor was at at the time of the event.
y	The y-coordinate of the location the cursor was at at the time of the event.
data	The "content" dropped in the window

Definition at line 83 of file GHOST_EventDragnDrop.h.

References GHOST_TEventDragnDropData::data, data, GHOST_TEventDragnDropData::dataType, GHOST_Event::m_data, m_dragnDropEventData, GHOST_TEventDragnDropData::x, and GHOST_TEventDragnDropData::y.

GHOST_EventDragnDrop::~GHOST_EventDragnDrop

(

)

[inline]

Definition at line 97 of file GHOST_EventDragnDrop.h.

References GHOST_TStringArray::count, GHOST_TEventDragnDropData::data, GHOST_TEventDragnDropData::dataType, addon::engine::free(), GHOST_kDragnDropTypeBitmap, GHOST_kDragnDropTypeFilenames, GHOST_kDragnDropTypeString, i, IMB_freeImBuf(), m_dragnDropEventData, NULL, and GHOST_TStringArray::strings.

---

Member Data Documentation

GHOST_TEventDragnDropData GHOST_EventDragnDrop::m_dragnDropEventData [protected]

The x,y-coordinates of the cursor position.

Definition at line 131 of file GHOST_EventDragnDrop.h.

Referenced by GHOST_EventDragnDrop(), and ~GHOST_EventDragnDrop().

---

The documentation for this class was generated from the following file:

• GHOST_EventDragnDrop.h
