#include <btBroadphaseInterface.h>

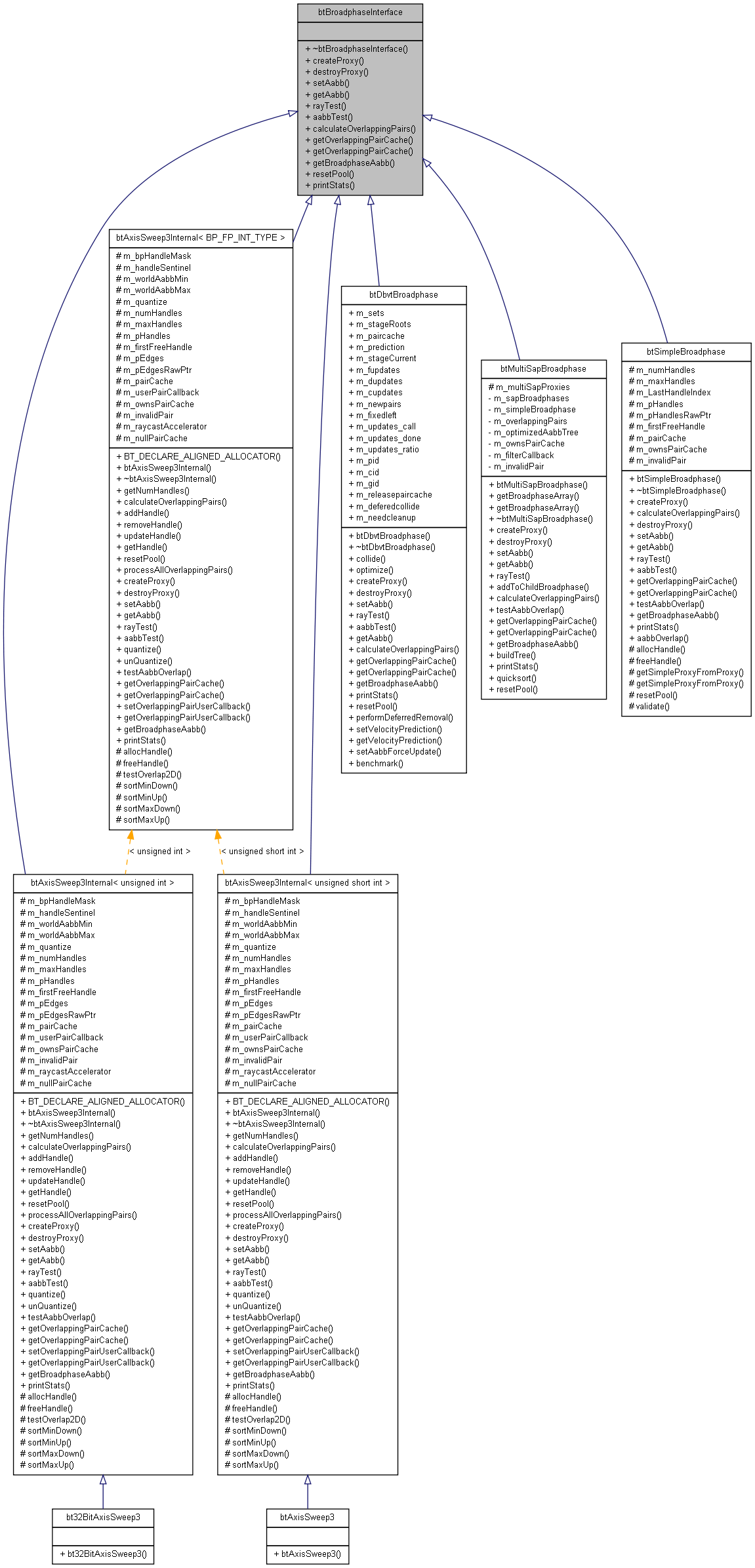

Inheritance diagram for btBroadphaseInterface:

[legend]

Public Member Functions
virtual	~btBroadphaseInterface ()
virtual btBroadphaseProxy *	createProxy (const btVector3 &aabbMin, const btVector3 &aabbMax, int shapeType, void userPtr, short int collisionFilterGroup, short int collisionFilterMask, btDispatcher dispatcher, void *multiSapProxy)=0
virtual void	destroyProxy (btBroadphaseProxy proxy, btDispatcher dispatcher)=0
virtual void	setAabb (btBroadphaseProxy proxy, const btVector3 &aabbMin, const btVector3 &aabbMax, btDispatcher dispatcher)=0
virtual void	getAabb (btBroadphaseProxy *proxy, btVector3 &aabbMin, btVector3 &aabbMax) const =0
virtual void	rayTest (const btVector3 &rayFrom, const btVector3 &rayTo, btBroadphaseRayCallback &rayCallback, const btVector3 &aabbMin=btVector3(0, 0, 0), const btVector3 &aabbMax=btVector3(0, 0, 0))=0
virtual void	aabbTest (const btVector3 &aabbMin, const btVector3 &aabbMax, btBroadphaseAabbCallback &callback)=0
virtual void	calculateOverlappingPairs (btDispatcher *dispatcher)=0
	calculateOverlappingPairs is optional: incremental algorithms (sweep and prune) might do it during the set aabb
virtual btOverlappingPairCache *	getOverlappingPairCache ()=0
virtual const btOverlappingPairCache *	getOverlappingPairCache () const =0
virtual void	getBroadphaseAabb (btVector3 &aabbMin, btVector3 &aabbMax) const =0
virtual void	resetPool (btDispatcher *dispatcher)
	reset broadphase internal structures, to ensure determinism/reproducability
virtual void	printStats ()=0

Detailed Description

The btBroadphaseInterface class provides an interface to detect aabb-overlapping object pairs. Some implementations for this broadphase interface include btAxisSweep3, bt32BitAxisSweep3 and btDbvtBroadphase. The actual overlapping pair management, storage, adding and removing of pairs is dealt by the btOverlappingPairCache class.

Definition at line 51 of file btBroadphaseInterface.h.

Constructor & Destructor Documentation

virtual btBroadphaseInterface::~btBroadphaseInterface ( ) [inline, virtual]

Definition at line 54 of file btBroadphaseInterface.h.

Member Function Documentation

virtual void btBroadphaseInterface::aabbTest	(	const btVector3 &	aabbMin,
		const btVector3 &	aabbMax,
		btBroadphaseAabbCallback &	callback
	)		`[pure virtual]`

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

Referenced by btCollisionWorld::contactTest().

virtual void btBroadphaseInterface::calculateOverlappingPairs ( btDispatcher * dispatcher ) [pure virtual]

calculateOverlappingPairs is optional: incremental algorithms (sweep and prune) might do it during the set aabb

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

Referenced by btCollisionWorld::performDiscreteCollisionDetection().

virtual btBroadphaseProxy* btBroadphaseInterface::createProxy	(	const btVector3 &	aabbMin,
		const btVector3 &	aabbMax,
		int	shapeType,
		void *	userPtr,
		short int	collisionFilterGroup,
		short int	collisionFilterMask,
		btDispatcher *	dispatcher,
		void *	multiSapProxy
	)		`[pure virtual]`

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

Referenced by btMultiSapBroadphase::setAabb().

virtual void btBroadphaseInterface::destroyProxy	(	btBroadphaseProxy *	proxy,
		btDispatcher *	dispatcher
	)		`[pure virtual]`

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

Referenced by btCollisionWorld::removeCollisionObject(), and btCollisionWorld::~btCollisionWorld().

virtual void btBroadphaseInterface::getAabb	(	btBroadphaseProxy *	proxy,
		btVector3 &	aabbMin,
		btVector3 &	aabbMax
	)		const `[pure virtual]`

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

virtual void btBroadphaseInterface::getBroadphaseAabb	(	btVector3 &	aabbMin,
		btVector3 &	aabbMax
	)		const `[pure virtual]`

getAabb returns the axis aligned bounding box in the 'global' coordinate frame will add some transform later

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

virtual btOverlappingPairCache* btBroadphaseInterface::getOverlappingPairCache ( ) [pure virtual]

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

Referenced by btContinuousDynamicsWorld::calculateTimeOfImpacts(), CcdPhysicsEnvironment::CcdPhysicsEnvironment(), btCollisionWorld::getPairCache(), btDiscreteDynamicsWorld::integrateTransforms(), btCollisionWorld::performDiscreteCollisionDetection(), btCollisionWorld::removeCollisionObject(), and btCollisionWorld::~btCollisionWorld().

virtual const btOverlappingPairCache* btBroadphaseInterface::getOverlappingPairCache ( ) const [pure virtual]

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

virtual void btBroadphaseInterface::printStats ( ) [pure virtual]

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

virtual void btBroadphaseInterface::rayTest	(	const btVector3 &	rayFrom,
		const btVector3 &	rayTo,
		btBroadphaseRayCallback &	rayCallback,
		const btVector3 &	aabbMin = `btVector3(0, 0, 0)`,
		const btVector3 &	aabbMax = `btVector3(0, 0, 0)`
	)		`[pure virtual]`

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

Referenced by btCollisionWorld::convexSweepTest(), btSoftRigidDynamicsWorld::rayTest(), and btCollisionWorld::rayTest().

virtual void btBroadphaseInterface::resetPool ( btDispatcher * dispatcher ) [inline, virtual]

reset broadphase internal structures, to ensure determinism/reproducability

Reimplemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

Definition at line 76 of file btBroadphaseInterface.h.

virtual void btBroadphaseInterface::setAabb	(	btBroadphaseProxy *	proxy,
		const btVector3 &	aabbMin,
		const btVector3 &	aabbMax,
		btDispatcher *	dispatcher
	)		`[pure virtual]`

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btDbvtBroadphase, btMultiSapBroadphase, btSimpleBroadphase, btAxisSweep3Internal< unsigned int >, and btAxisSweep3Internal< unsigned short int >.

Referenced by btSimpleDynamicsWorld::updateAabbs(), btSoftBody::updateBounds(), and btCollisionWorld::updateSingleAabb().

The documentation for this class was generated from the following file:

btBroadphaseInterface.h
