#include <RAS_IRenderTools.h>

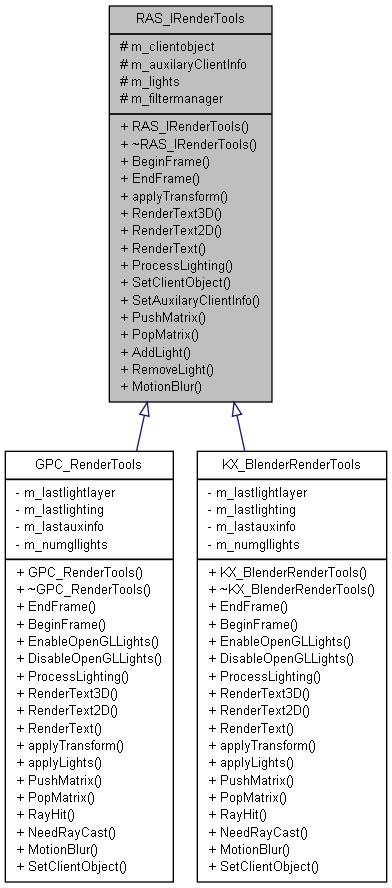

Inheritance diagram for RAS_IRenderTools:

Public Types
enum	RAS_TEXT_RENDER_MODE { RAS_TEXT_RENDER_NODEF = 0, RAS_TEXT_NORMAL, RAS_TEXT_PADDED, RAS_TEXT_MAX }
Public Member Functions
	RAS_IRenderTools ()
virtual	~RAS_IRenderTools ()
virtual void	BeginFrame (RAS_IRasterizer *rasty)=0
virtual void	EndFrame (RAS_IRasterizer *rasty)=0
virtual void	applyTransform (class RAS_IRasterizer rasty, double oglmatrix, int drawingmode)=0
virtual void	RenderText3D (int fontid, const char text, int size, int dpi, float color, double *mat, float aspect)=0
virtual void	RenderText2D (RAS_TEXT_RENDER_MODE mode, const char *text, int xco, int yco, int width, int height)=0
virtual void	RenderText (int mode, RAS_IPolyMaterial *polymat, float v1[3], float v2[3], float v3[3], float v4[3], int glattrib)=0
virtual void	ProcessLighting (RAS_IRasterizer *rasty, bool uselights, const MT_Transform &trans)=0
virtual void	SetClientObject (RAS_IRasterizer rasty, void obj)
void	SetAuxilaryClientInfo (void *inf)
virtual void	PushMatrix ()=0
virtual void	PopMatrix ()=0
virtual void	AddLight (struct RAS_LightObject *lightobject)
virtual void	RemoveLight (struct RAS_LightObject *lightobject)
virtual void	MotionBlur (RAS_IRasterizer *rasterizer)=0
Protected Attributes
void *	m_clientobject
void *	m_auxilaryClientInfo
std::vector< struct RAS_LightObject * >	m_lights
RAS_2DFilterManager	m_filtermanager

Detailed Description

Definition at line 50 of file RAS_IRenderTools.h.

Member Enumeration Documentation

enum RAS_IRenderTools::RAS_TEXT_RENDER_MODE

Enumerator:

RAS_TEXT_RENDER_NODEF
RAS_TEXT_NORMAL
RAS_TEXT_PADDED
RAS_TEXT_MAX

Definition at line 62 of file RAS_IRenderTools.h.

Constructor & Destructor Documentation

RAS_IRenderTools::RAS_IRenderTools ( ) [inline]

Definition at line 69 of file RAS_IRenderTools.h.

virtual RAS_IRenderTools::~RAS_IRenderTools ( ) [inline, virtual]

Definition at line 76 of file RAS_IRenderTools.h.

Member Function Documentation

void RAS_IRenderTools::AddLight ( struct RAS_LightObject * lightobject ) [virtual]

Definition at line 46 of file RAS_IRenderTools.cpp.

References m_lights.

Referenced by KX_LightObject::GetReplica(), and KX_LightObject::KX_LightObject().

virtual void RAS_IRenderTools::applyTransform	(	class RAS_IRasterizer *	rasty,
		double *	oglmatrix,
		int	drawingmode
	)		`[pure virtual]`

Implemented in KX_BlenderRenderTools, and GPC_RenderTools.

Referenced by RAS_MaterialBucket::RenderMeshSlot().

virtual void RAS_IRenderTools::BeginFrame ( RAS_IRasterizer * rasty ) [pure virtual]

Implemented in KX_BlenderRenderTools, and GPC_RenderTools.

Referenced by KX_KetsjiEngine::BeginFrame(), ImageRender::Render(), and KX_KetsjiEngine::RenderDome().

virtual void RAS_IRenderTools::EndFrame ( RAS_IRasterizer * rasty ) [pure virtual]

Implemented in KX_BlenderRenderTools, and GPC_RenderTools.

Referenced by KX_KetsjiEngine::EndFrame().

virtual void RAS_IRenderTools::MotionBlur ( RAS_IRasterizer * rasterizer ) [pure virtual]

Implemented in KX_BlenderRenderTools, and GPC_RenderTools.

Referenced by KX_KetsjiEngine::RenderDome().

virtual void RAS_IRenderTools::PopMatrix ( ) [pure virtual]

Implemented in KX_BlenderRenderTools, and GPC_RenderTools.

Referenced by RAS_MaterialBucket::RenderMeshSlot().

virtual void RAS_IRenderTools::ProcessLighting	(	RAS_IRasterizer *	rasty,
		bool	uselights,
		const MT_Transform &	trans
	)		`[pure virtual]`

Implemented in KX_BlenderRenderTools, and GPC_RenderTools.

Referenced by RAS_MaterialBucket::ActivateMaterial().

virtual void RAS_IRenderTools::PushMatrix ( ) [pure virtual]

Implemented in KX_BlenderRenderTools, and GPC_RenderTools.

Referenced by RAS_MaterialBucket::RenderMeshSlot().

void RAS_IRenderTools::RemoveLight ( struct RAS_LightObject * lightobject ) [virtual]

Definition at line 51 of file RAS_IRenderTools.cpp.

References find(), and m_lights.

Referenced by KX_LightObject::~KX_LightObject().

virtual void RAS_IRenderTools::RenderText	(	int	mode,
		RAS_IPolyMaterial *	polymat,
		float	v1[3],
		float	v2[3],
		float	v3[3],
		float	v4[3],
		int	glattrib
	)		`[pure virtual]`

Implemented in KX_BlenderRenderTools, and GPC_RenderTools.

Referenced by RAS_OpenGLRasterizer::IndexPrimitives_3DText().

virtual void RAS_IRenderTools::RenderText2D	(	RAS_TEXT_RENDER_MODE	mode,
		const char *	text,
		int	xco,
		int	yco,
		int	width,
		int	height
	)		`[pure virtual]`

Renders 2D text string.

Parameters:

mode	The type of text
text	The string to render.
xco	Position on the screen (origin in lower left corner).
yco	Position on the screen (origin in lower left corner).
width	Width of the canvas to draw to.
height	Height of the canvas to draw to.

Implemented in KX_BlenderRenderTools, and GPC_RenderTools.

virtual void RAS_IRenderTools::RenderText3D	(	int	fontid,
		const char *	text,
		int	size,
		int	dpi,
		float *	color,
		double *	mat,
		float	aspect
	)		`[pure virtual]`

Renders 3D text string using BFL.

Parameters:

fontid	The id of the font.
text	The string to render.
size	The size of the text.
dpi	The resolution of the text.
color	The color of the object.
mat	The Matrix of the text object.
aspect	A scaling factor to compensate for the size.
